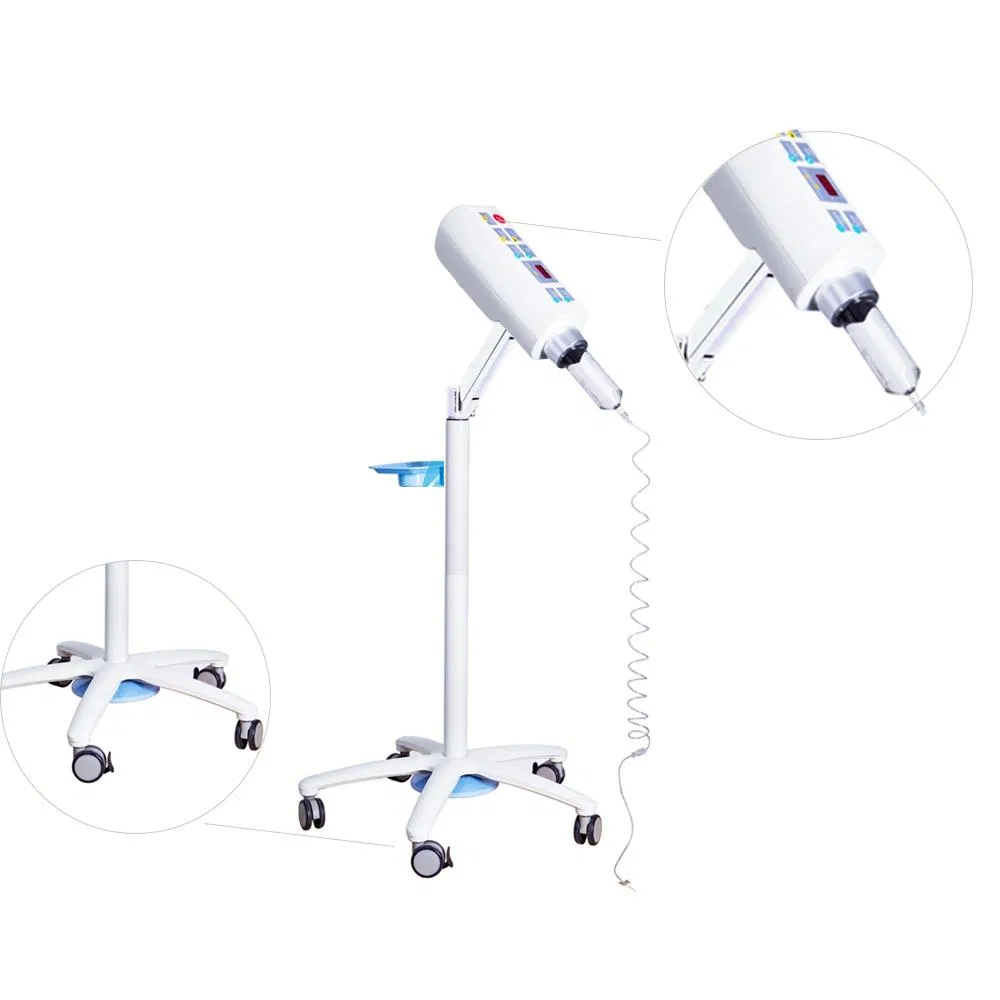

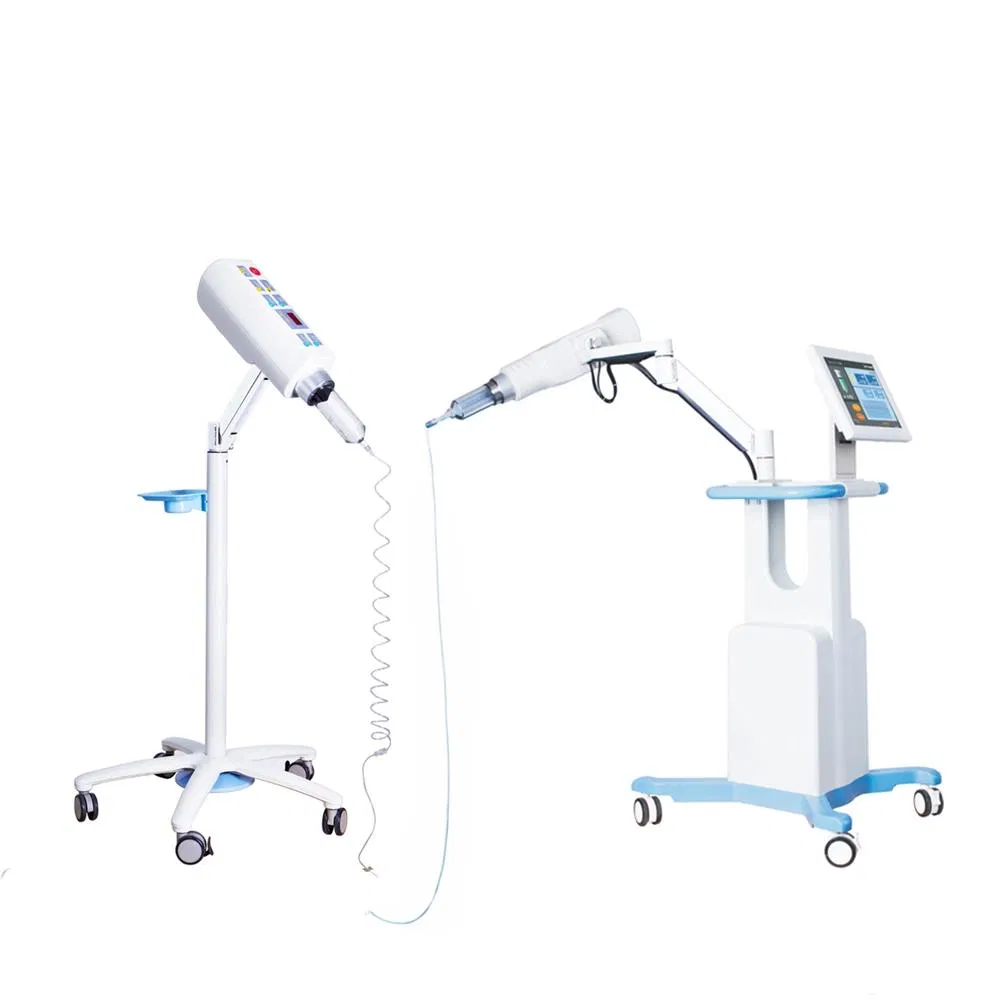

Advanced Medical Contrast Automatic Injection System with Single Syringe for CT Imaging

1 / 5

Advanced Medical Contrast Automatic Injection System with Single Syringe for CT Imaging

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Certification:	CE, FDA, EEC, MSDS, ISO13485

Send Inquiry

Product Description

Medical Contrast Automatic Injection System

Basic Specifications

Power Source

Electricity

Material

Metal, Plastic, Steel

Warranty

1 Year

Syringe Capacity

1-100ml

Pressure Limit

50~350psi (345~2415kpa)

Trademark

UMY

Key Product Features

Easy to Operation: Large and true color display with an intuitive graphic and text interface. Minimized operation keys for maximum efficiency.

Advanced CT Compatibility: Compatible with various multi-slice CT (MS-CT), spiral CT, and multi-detector CT to obtain enhanced diagnostic imaging of hepatic arterial, venous, and parenchymal phases.

Safety First Design: Comprehensive and effective safety controls for precise injection management.

Ergonomic Structure: Flexible rack movement with accessory trays for extension tubes and medicine bottles.

Technical Parameters

Syringe Capacity	1-100ml / 200ml disposable syringe supported
Power Requirements	AC 198~242V, Frequency 50/60Hz, 200VA
Pressure Limit	50~350psi (345~2415kPa)
Injection Rate	0.1~10.0ml/sec., step length 0.1ml/sec.
Injection Dose	0.1ml to full syringe capacity
Exposure Time	0.01~6.3s

Frequently Asked Questions

What is the adjustable injection rate for this system?

The injection rate is adjustable from 0.1 to 10.0 ml/sec, with a precise step length of 0.1 ml/sec.

Which CT scanners are compatible with this injection system?

It is compatible with various multi-slice CT (MS-CT) systems, including spiral CT, multi-detector CT, and multi-row CT scanners.

What syringe capacities can be used?

The system supports syringe capacities ranging from 1ml up to 100ml, and is designed for use with 200ml disposable syringes.

Is the equipment easy to move within the hospital?

Yes, the system features a human-centric structure with a flexible rack that can be easily moved and positioned according to clinical needs.

What are the safety features for pressure control?

The system has a built-in pressure limit range of 50 to 350 psi (345 to 2415 kPa) to ensure safe operation during contrast delivery.

Does it provide support for multi-phase scanning?

Yes, by selecting appropriate rates and delay times, it can facilitate enhanced scan images for hepatic arterial, venous, and parenchymal phases in a single injection.
