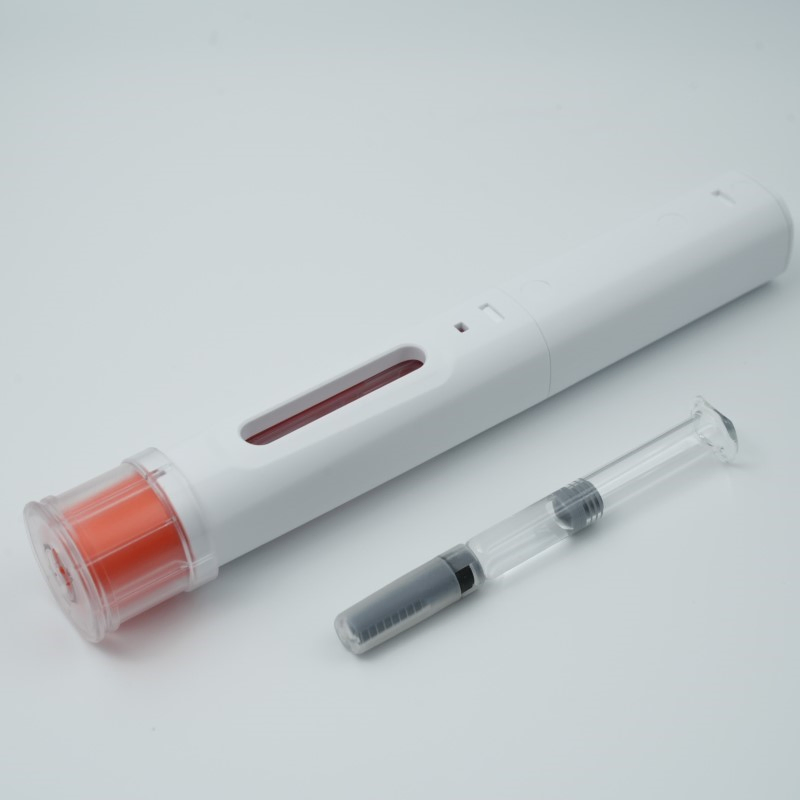

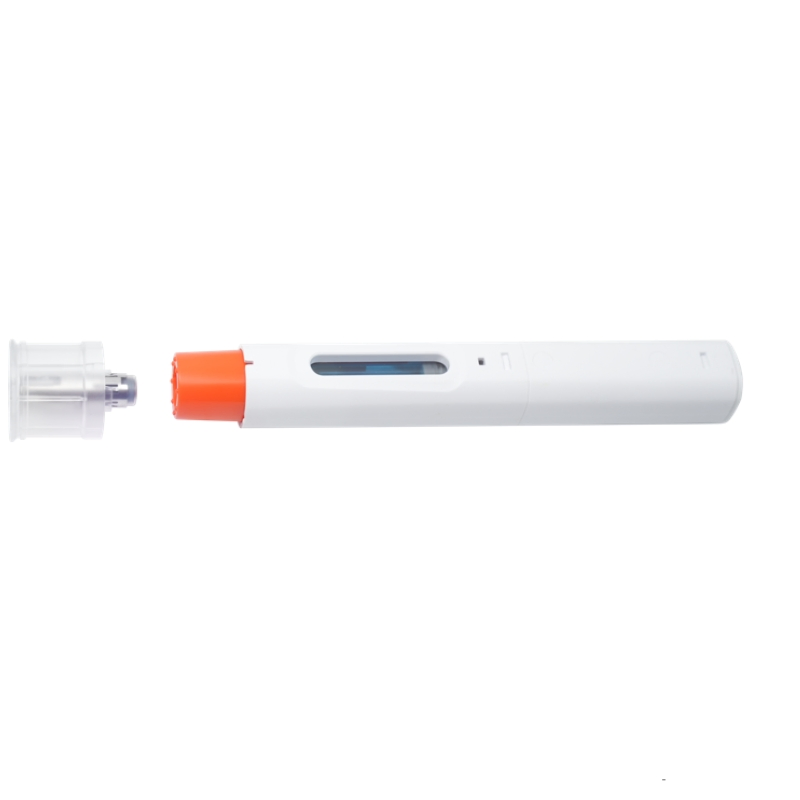

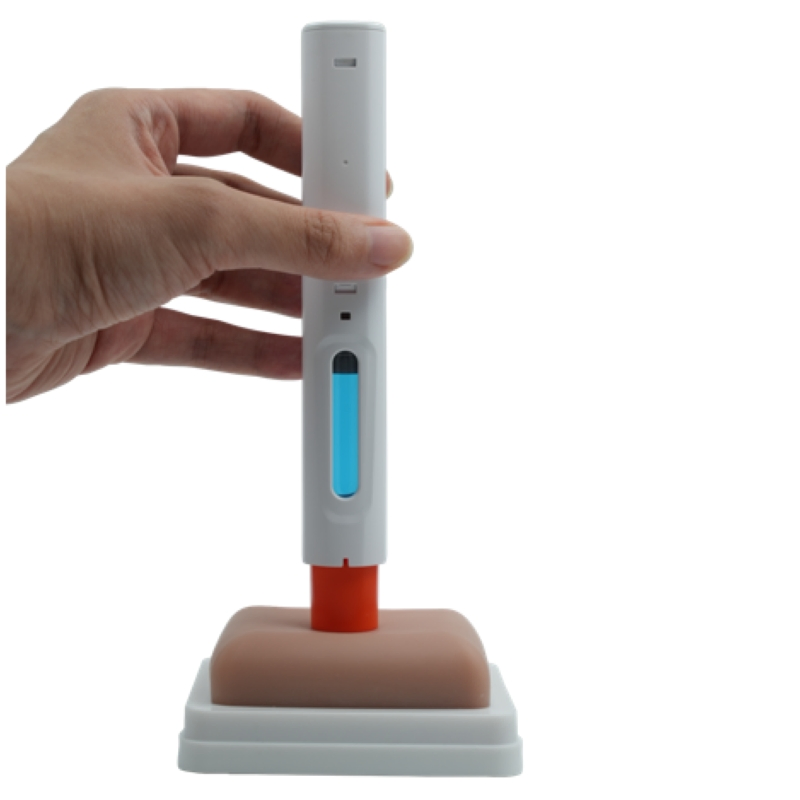

Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
1 / 5
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml
Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml

Advanced Drug Delivery Autoinjector Systems with Needle-Stick 1ml

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
HL002
Color
White
Material
Plastic
Special Feature
Disposable
Type
Drug Delivery Device
Injection Dose
Single Dose
Manual/Auto
Automatic
Origin
China
✨

Device Features

  • Simple 2-step operation
  • Needle cover activation with push-on-skin release
  • Audible, visual, and tactile feedback for injection confirmation
  • Ergonomic one-handed operation and ultra-compact design
  • Safety: Permanently hidden needle and passive locking needle cover
  • Proven platform product for low risk and short time to market
Autoinjector Systems
🛠️

Customization & Manufacturing

  • Compatible with glass and polymer syringes from all major manufacturers.
  • Professional technical support ensures a simple terminal assembly process and low-cost production.
  • Versatile platform supporting fill volumes of 1ml and 2.25ml with varying viscosities.
  • Enhanced grip options using different surface materials and ergonomic structures.
  • Plastic casing allows for unique, aesthetically pleasing, and customized shapes.
Customization 1
Customization 2
📊

Technical Parameters

Model Imogen Honor Grow
Primary Container1 ml Long PFS1 ml Long PFS2.25 ml PFS
Injection DoseFixed doseFixed doseFixed dose
Viscosity≤20 cP≤20 cP≤ 20cP
Needle Diameter27G/29GTW27G/29GTW27G/29GTW
Injection Depth6±2 mm6±2 mm6±2 mm
FeedbackVisual & AuditoryVisual & AuditoryVisual & Auditory
Dimensions18*18*145 mm18*18*159.2 mm22*22*159.2 mm
Device Detail 1
Device Detail 2
🏥

Areas of Care

Epinephrine/Adrenaline Osteoporosis Growth Hormone Deficiency Anaphylaxis Oncology Rheumatoid Arthritis Migraine Anaemia Multiple Sclerosis
❓

Frequently Asked Questions

How many steps are required to operate the autoinjector?
The device features a simple 2-step operation: needle cover activation and push-on-skin release, making it ideal for one-handed use.
Is the needle visible during or after the injection?
No, the needle is permanently hidden before, during, and after use, featuring a passive locking needle cover to prevent accidental sticks.
What type of feedback does the user receive?
The autoinjector provides audible clicks (at the beginning and end), visual confirmation via a viewing window, and tactile feedback.
Can the device be customized for different fill volumes?
Yes, the platform is compatible with 1ml and 2.25ml pre-filled syringes (PFS) and can be adjusted for various viscosities.
Is this device suitable for home administration?
Absolutely. Its ergonomic design and safety features are specifically engineered for self-administration in various care areas like migraine or rheumatoid arthritis.
