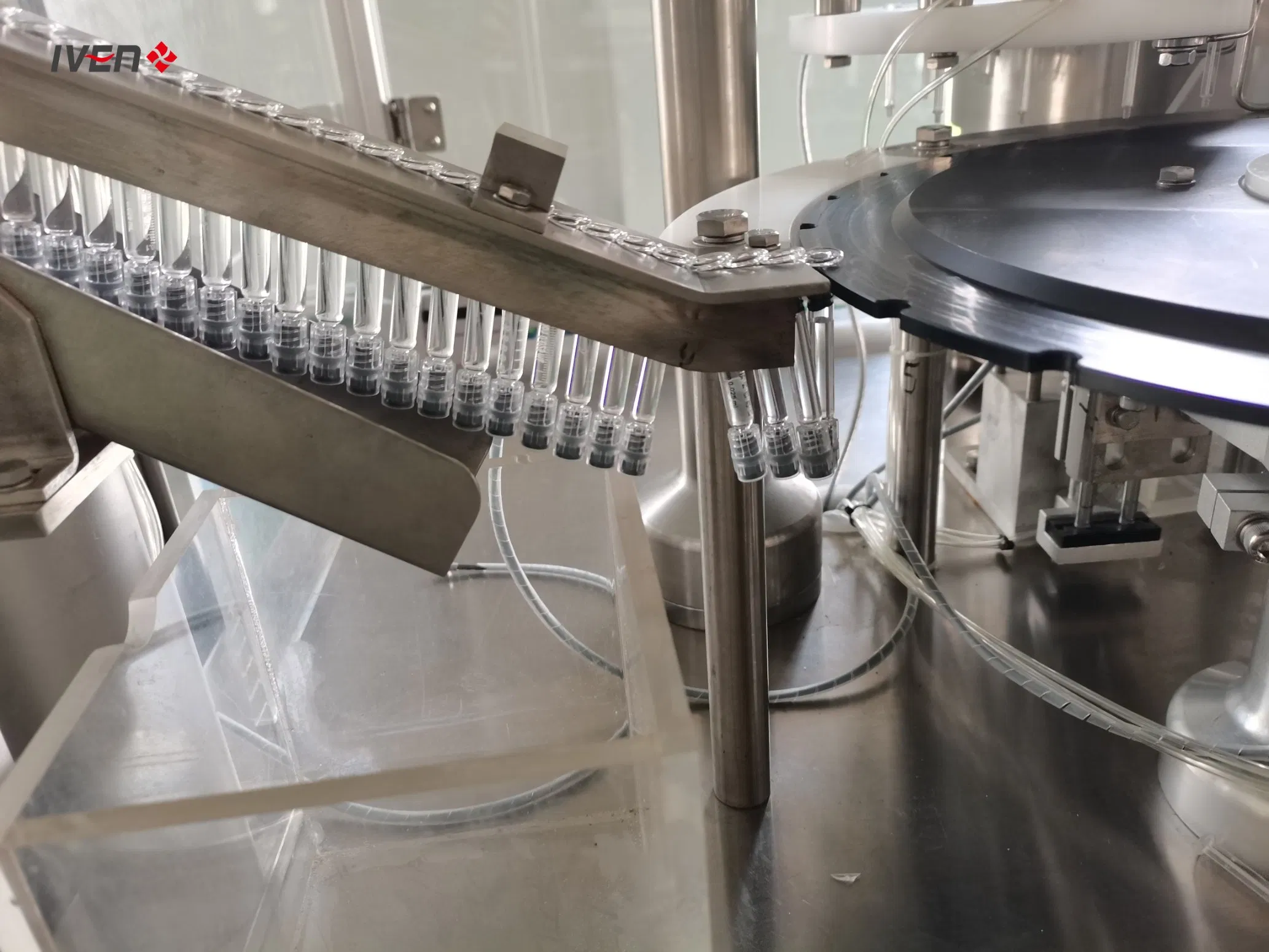

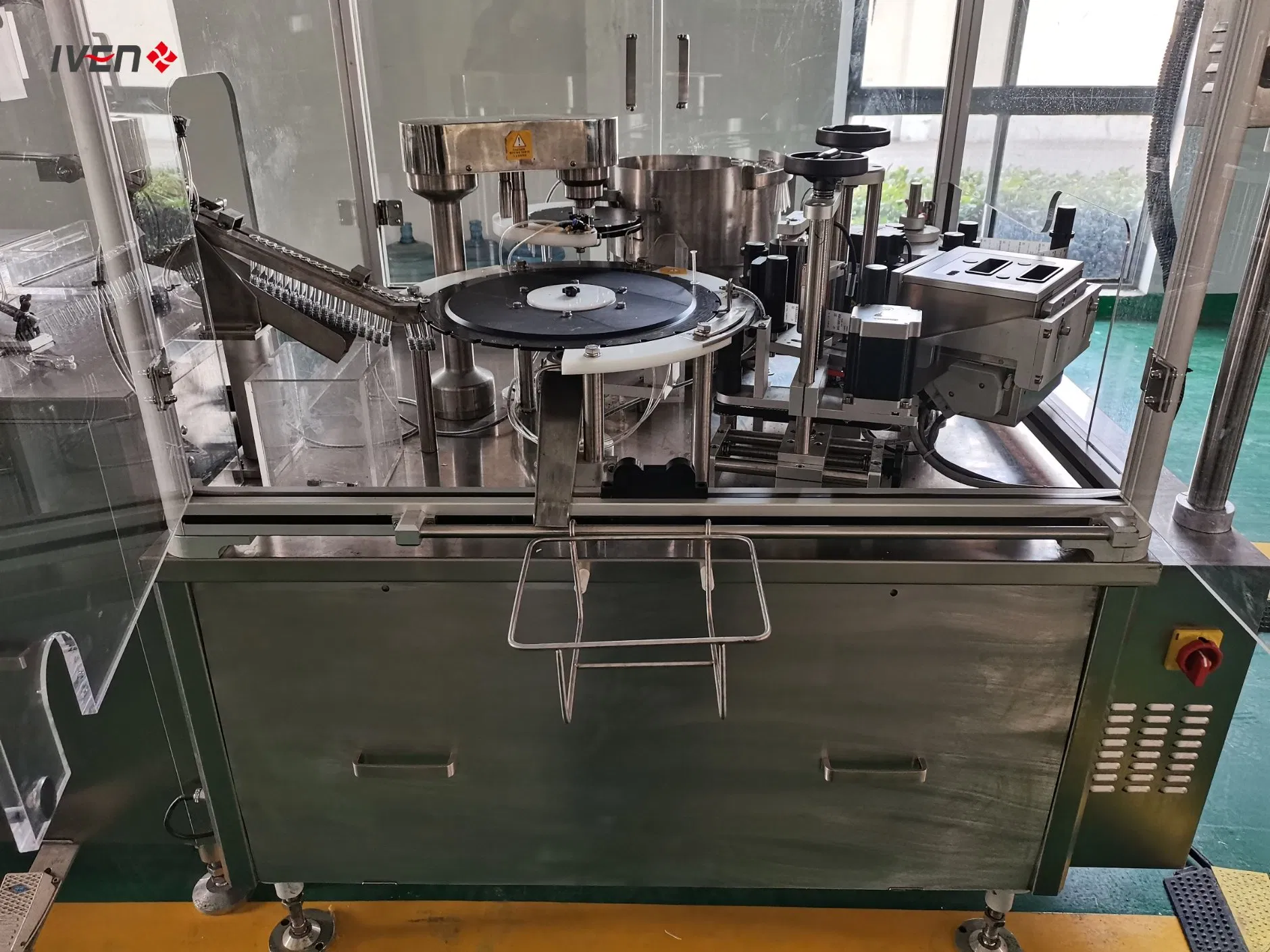

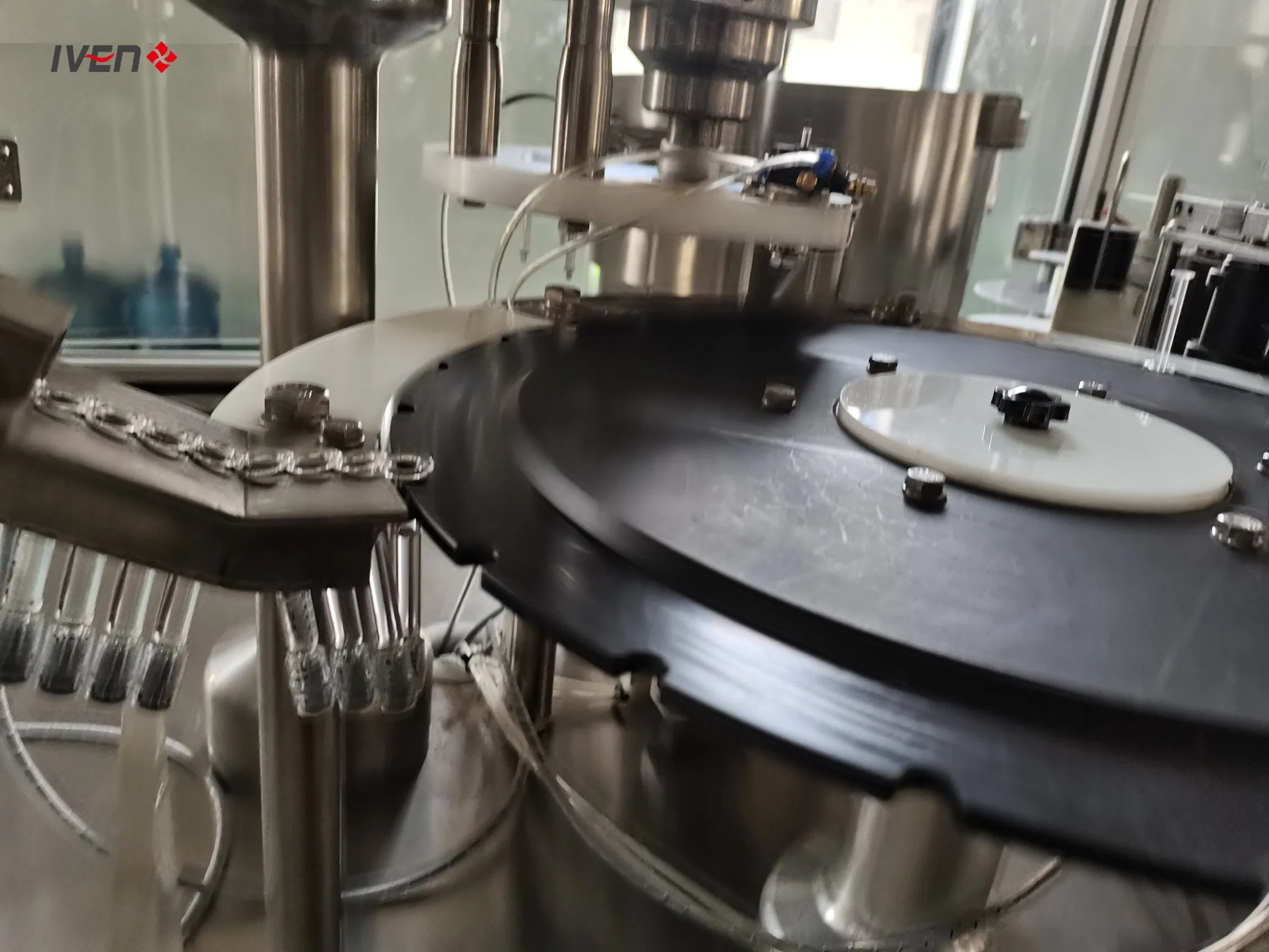

GMP Approved Sterile Prefilled Injector Filling Systems / Serum Disposable Prefilled Syringe Filling System

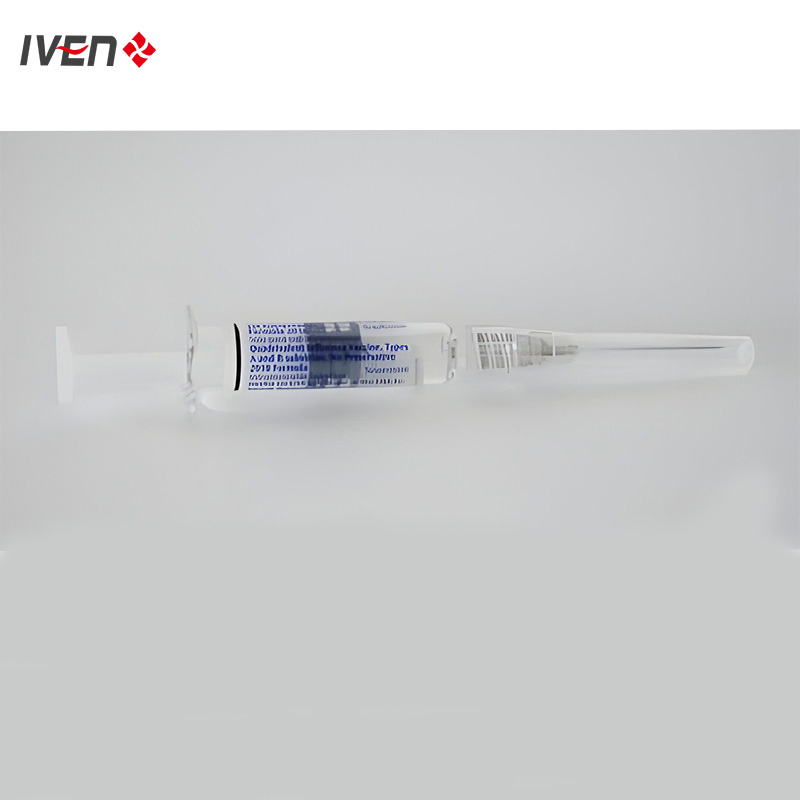

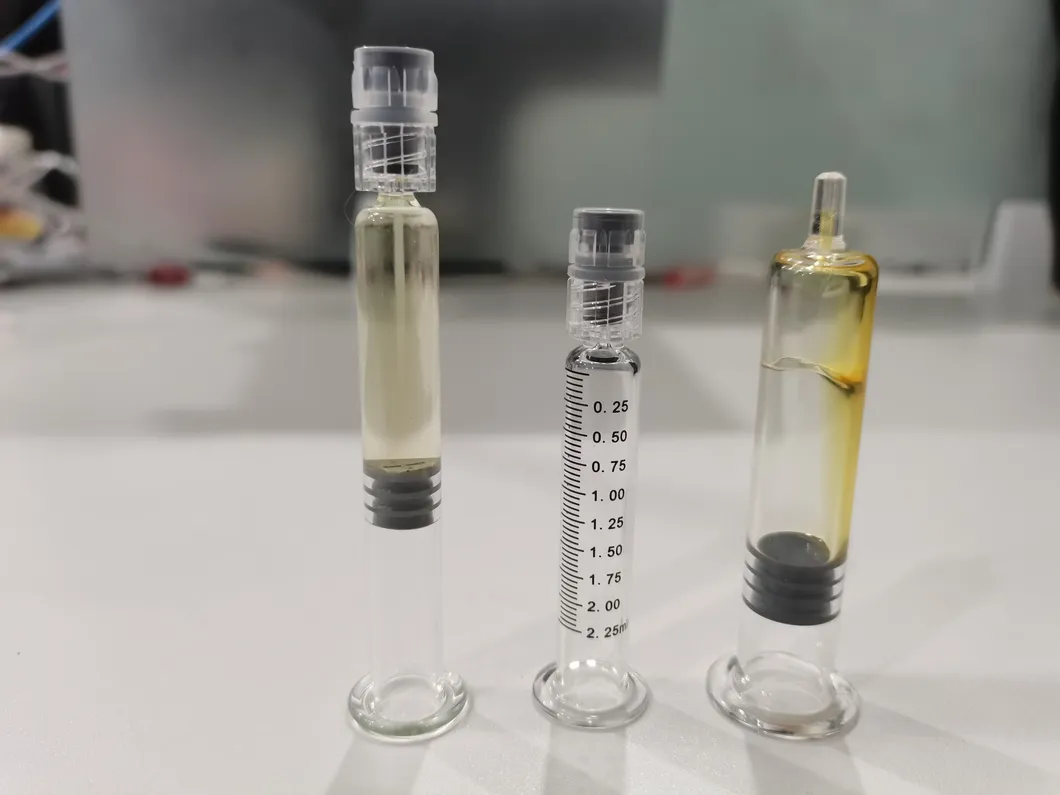

This machinery is used to automatically fill the pre-sterilized syringe (SCF type) made by major global suppliers. The main process includes:
Auto De-bagging | Auto Tub Opening | PFS Filling & Stoppering Outfeeding

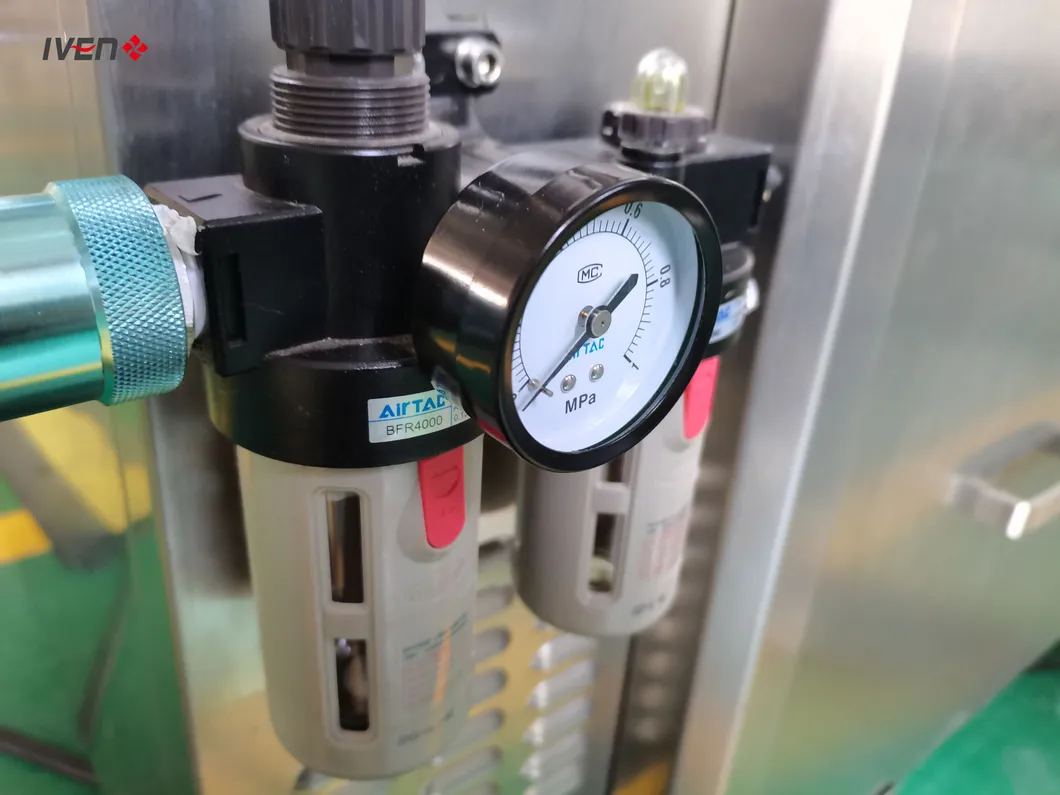

S/S rotating pump, 5 filling nozzles, and 4 servo motors allow filling volume to be set and adjusted accurately on PLC without tools. Full automatic operation monitors vacuum pressure, nitrogen pressure, C/A pressure, and includes fault alarms with position indication.

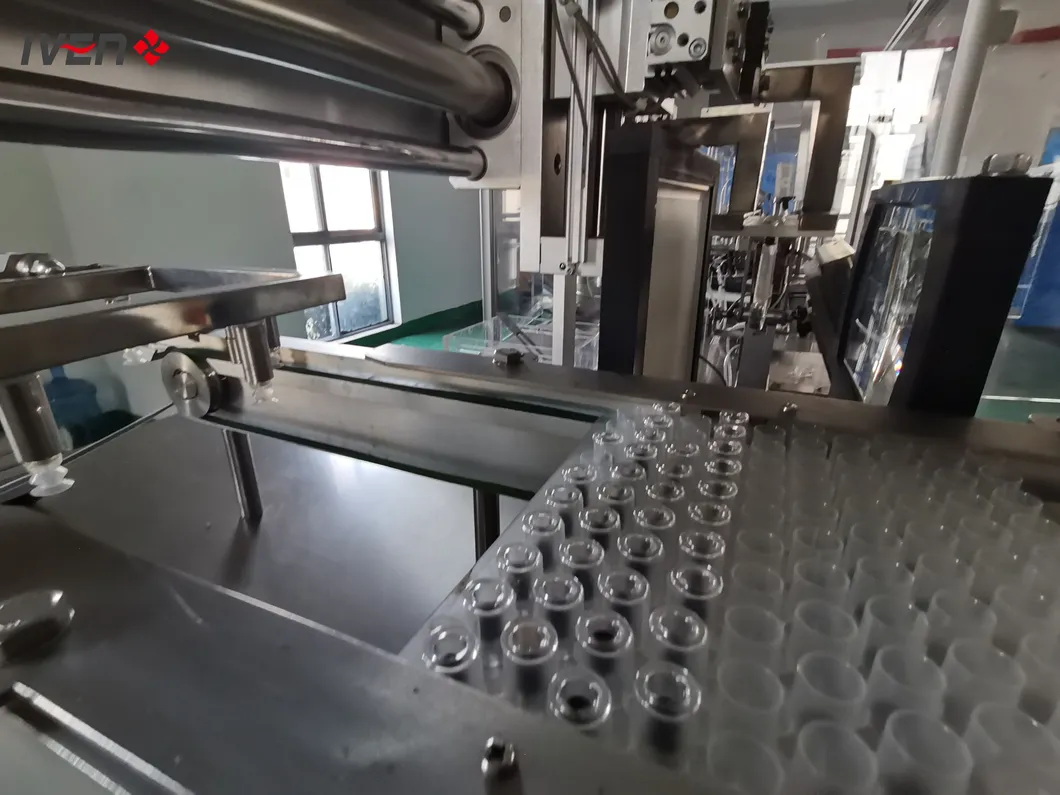

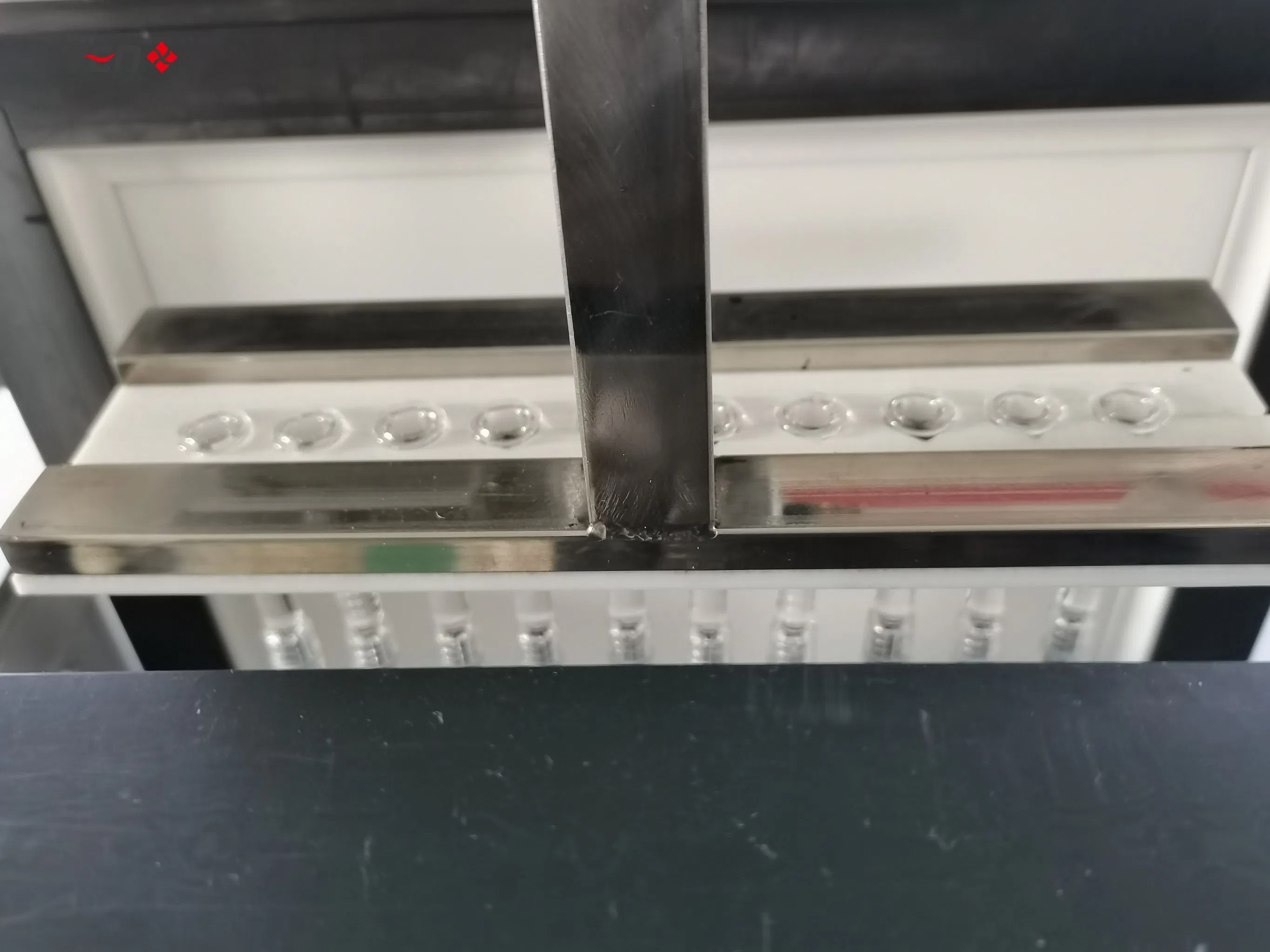

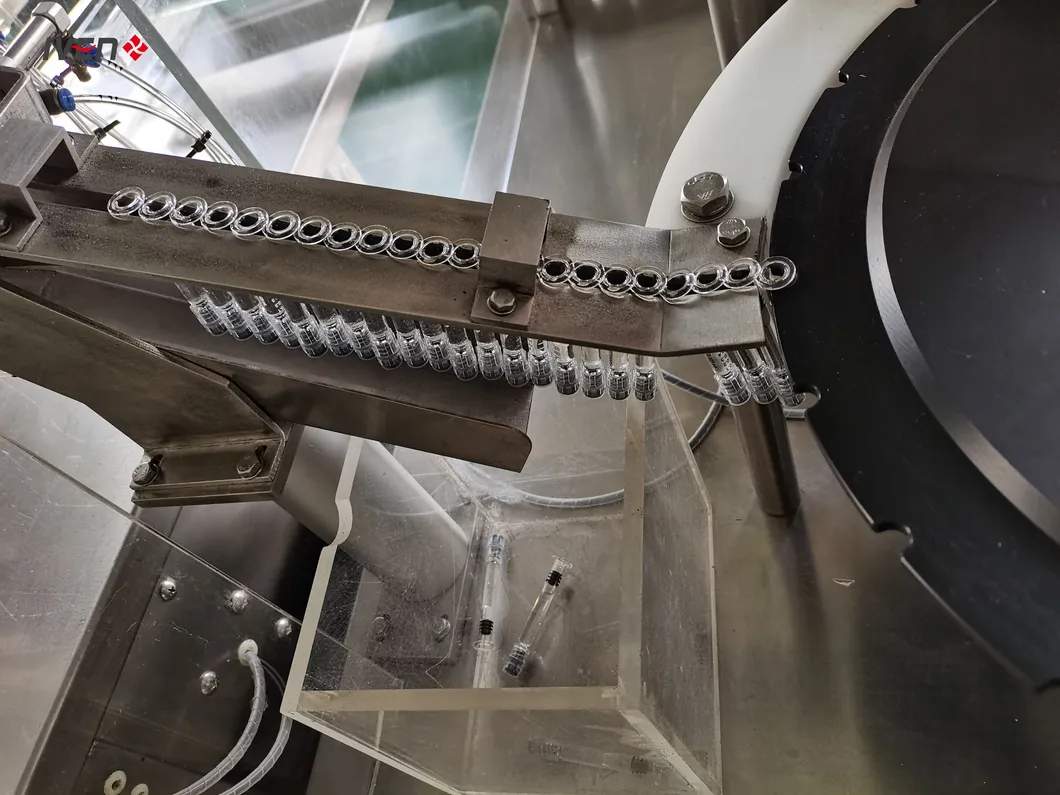

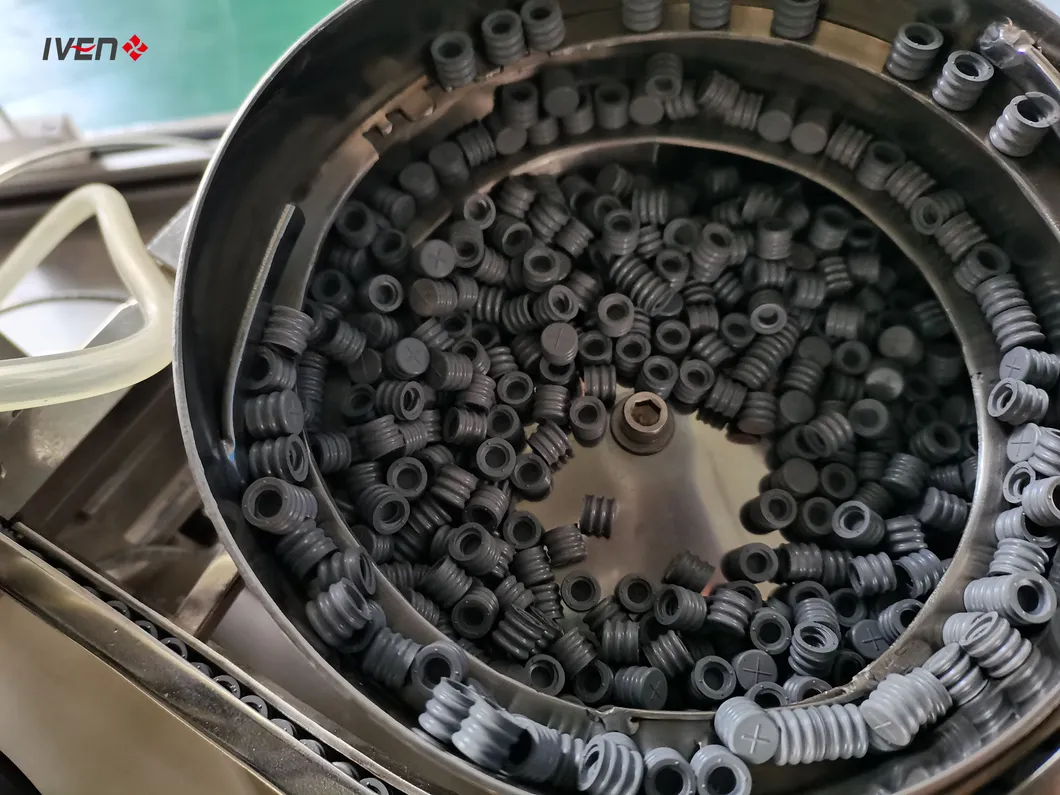

Prefill syringe filling and sealing machine is used for pre-sterilized syringes (SCF type). Processes involve: syringe nest-tub feeding, paper-cover opening/throwing, vacuum filling, vacuum plugging, and nest-tub outfeeding.
Customer-designed options are available for other types of syringes.
| Production Capacity | 2000-3500 Syringes/Hour |
| Filling Volume | 0.1-0.5ml, 0.5-3ml, 3-10ml, 10-30ml |
| Filling Nozzle | 5 sets |
| X Travel Distance | 900mm |
| Vacuum Level | 0- -98Kpa (0- -750mmHG) |
| Nitrogen | 1Kg/cm², 0.1m³/min, 0.25u |
| Compressed Air | 6Kg/cm², 0.35m²/min |
| Power Supply | 380V/220V, 50-60Hz, 5.5KW, 3P |
| Dimension | 3050 x 1600 x 1900MM (L x W x H) |
| Machine Weight | 950Kgs |
