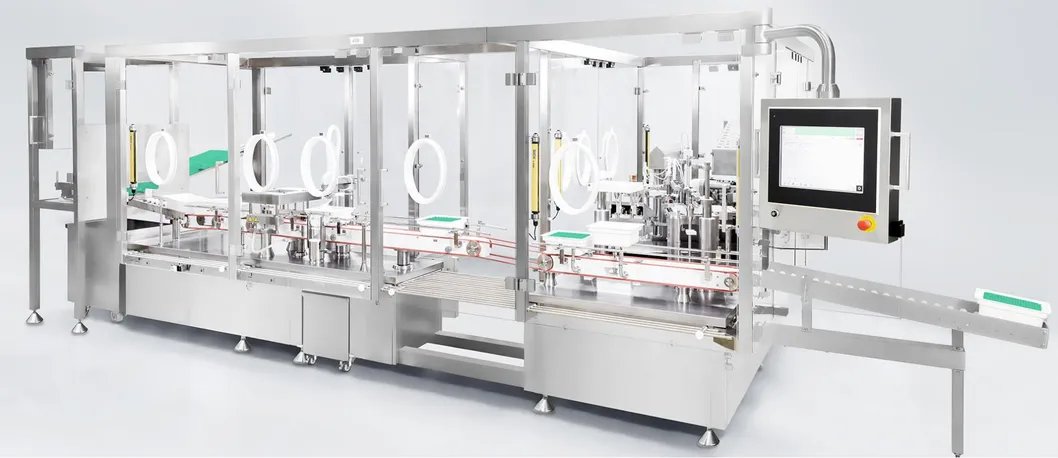

Customized Syringe Prefilled Filling and Sealing System with CE Certified

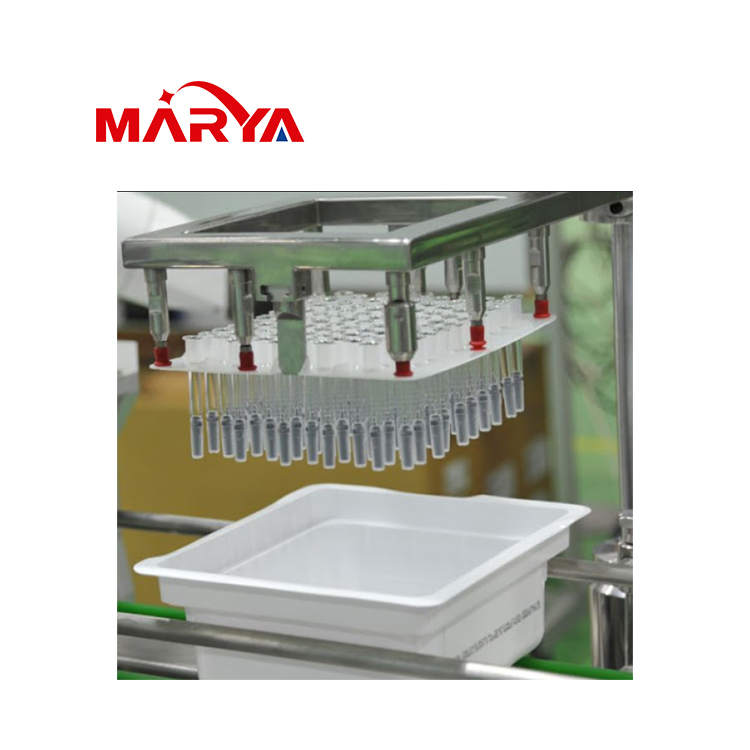

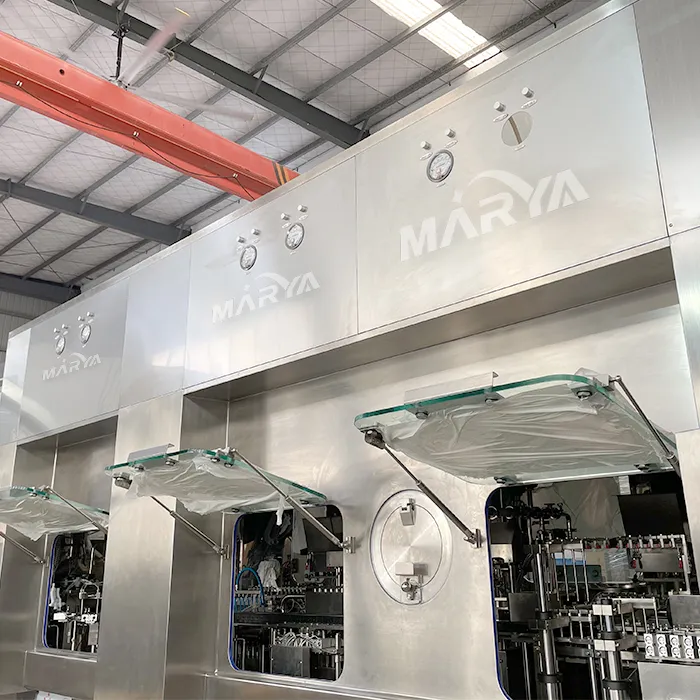

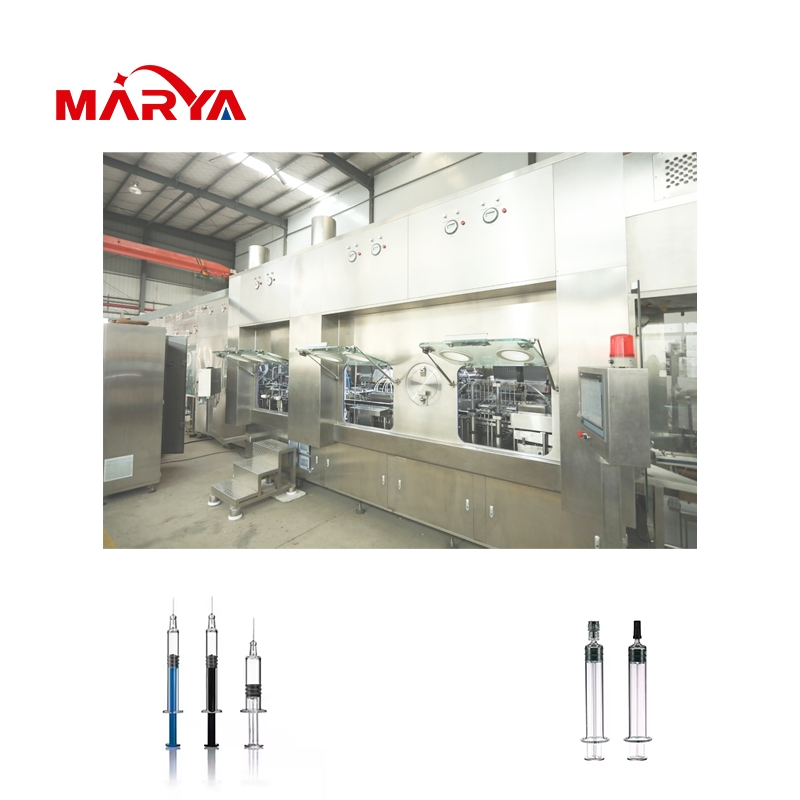

The Syringe Filling and Sealing System is mainly used for the unpacking, tearing, filling and plugging of disposable syringes in honeycomb trays in pharmaceutical plants. It is designed for the production and packaging of various aseptic products such as vaccines, monoclonal antibodies, small molecule heparin, insulin, and hyaluronic acid.
| Parameter Item | Specification Details |
|---|---|
| Suitable Product Range | 0.1-20ml (change specification parts properly) |
| Power Supply | 380V 50Hz |
| Power | 4.4kw |
| Filling Error | +/-1% |
| Compress Air Pressure | 0.6~0.8MPa 20m³/h |
| Auto Stoppering Rate | >=99.5% |
| Single Machine Noise | <=70dB |
| Weight | 750kg |
| Dimension | 1630X1320X1700(mm) |

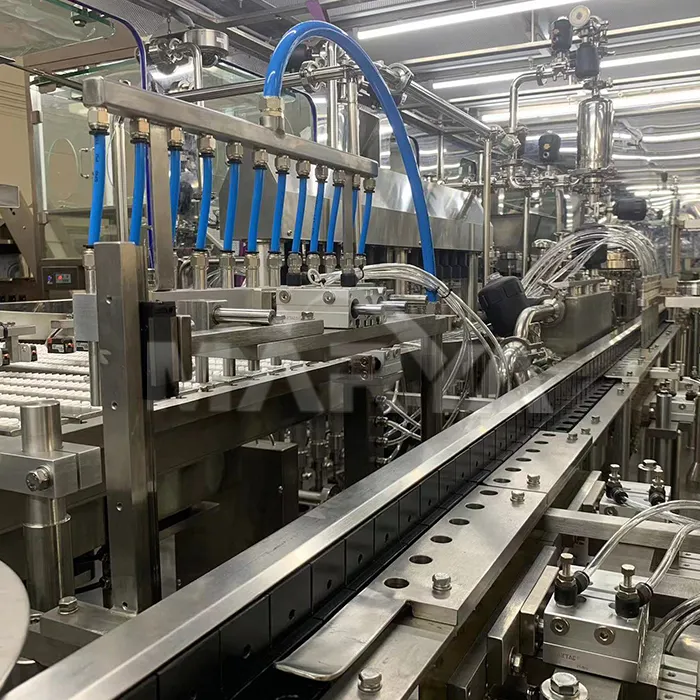

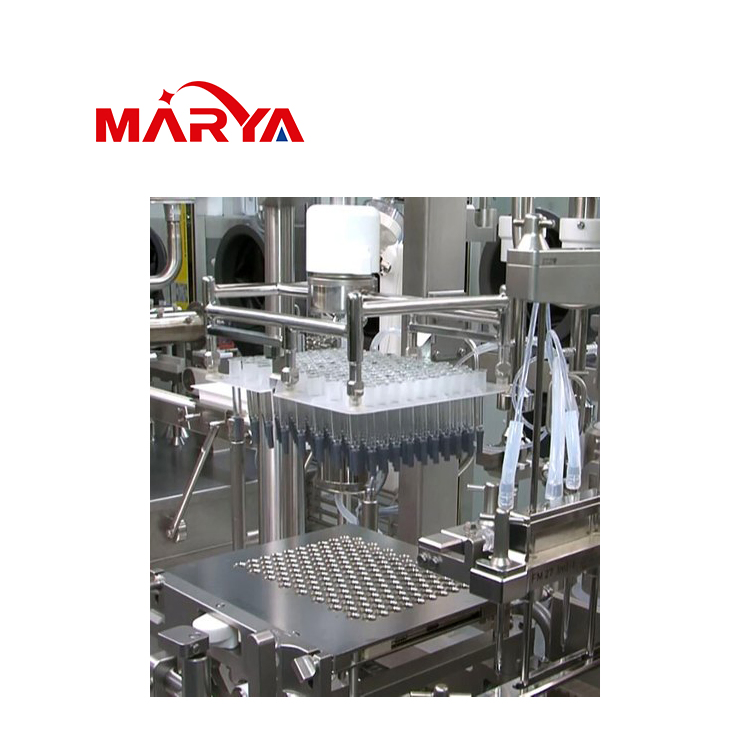

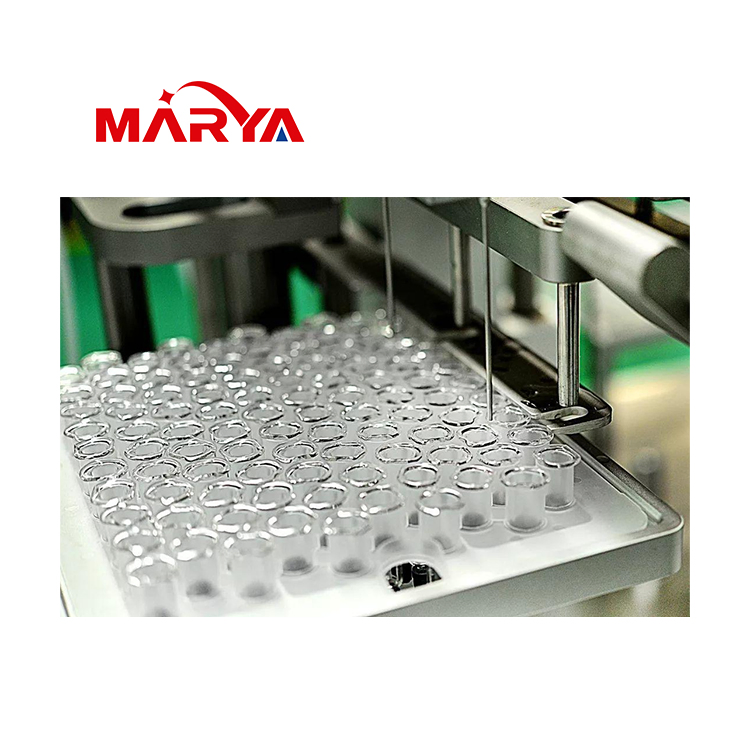

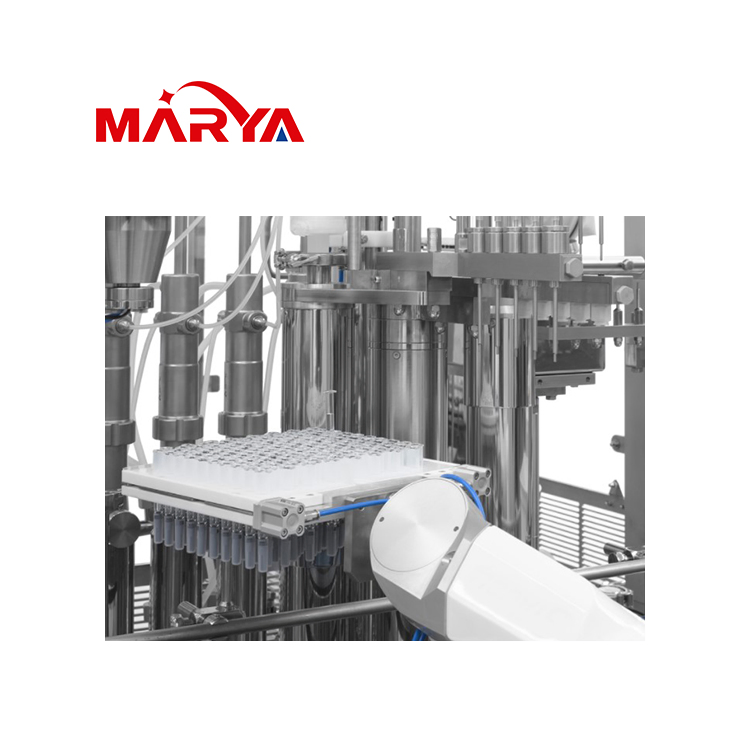

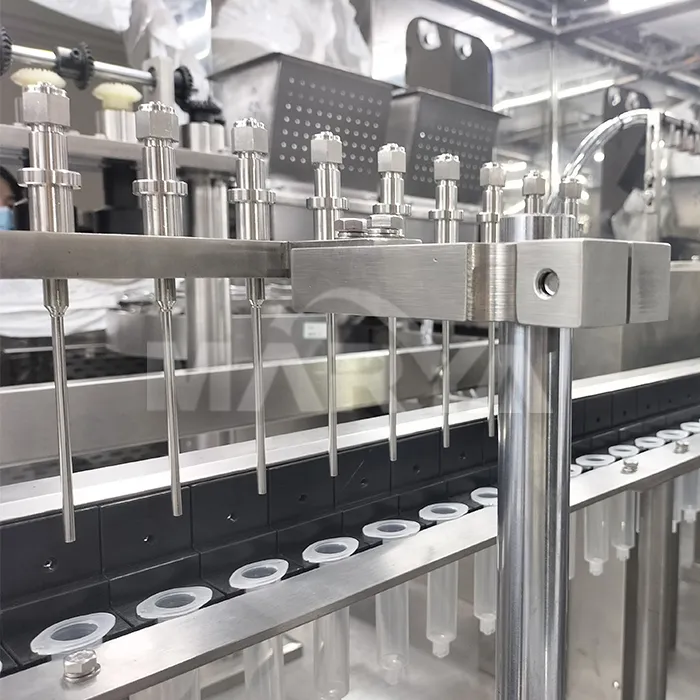

The system features high-performance "no bottle no filling" and linked bottle squeeze stop functions. It can be equipped with multiple robots for collaborative control to fully automate the tearing, de-lining, filling, plugging, and weighing processes.
