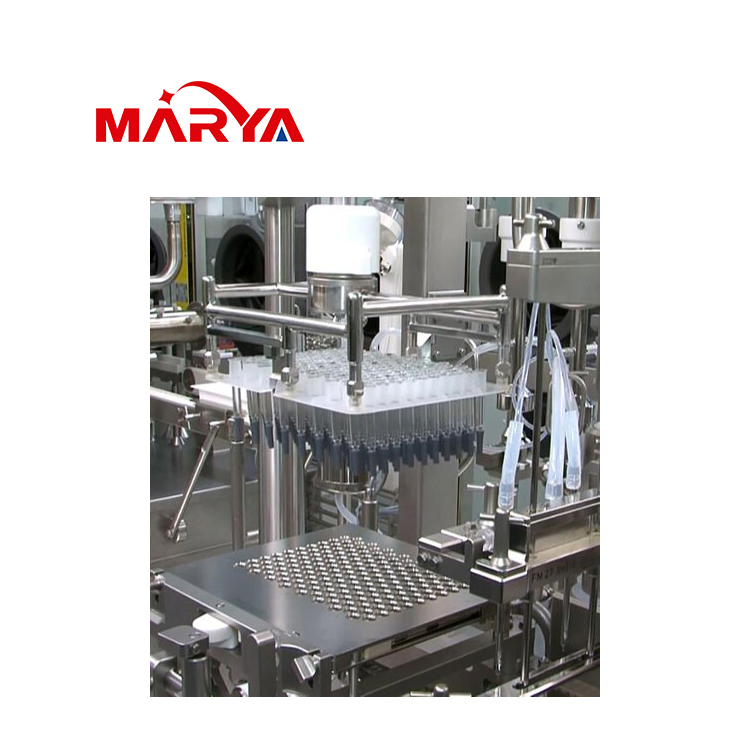

Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
1 / 5
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer
Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer

Marya GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System Manufacturer

Customization: Available
After-sales Service: Field Installation, Commissioning and Training
Warranty: 1 Year Warranty
Send Inquiry

Product Description

Basic Information
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Vacuum
Structure
Linear
Packaging Material
Plastic
Control System
PLC Control
Product Range
0.1-20ml
Product Description

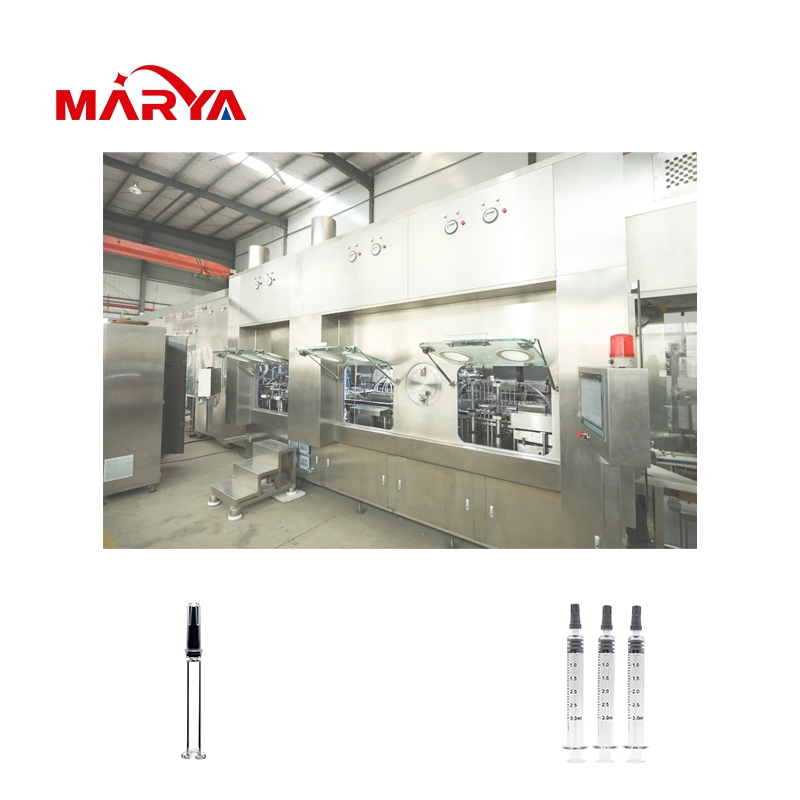

GMP Certified Pharmaceutical Injection Prefilled Syringe Filling System

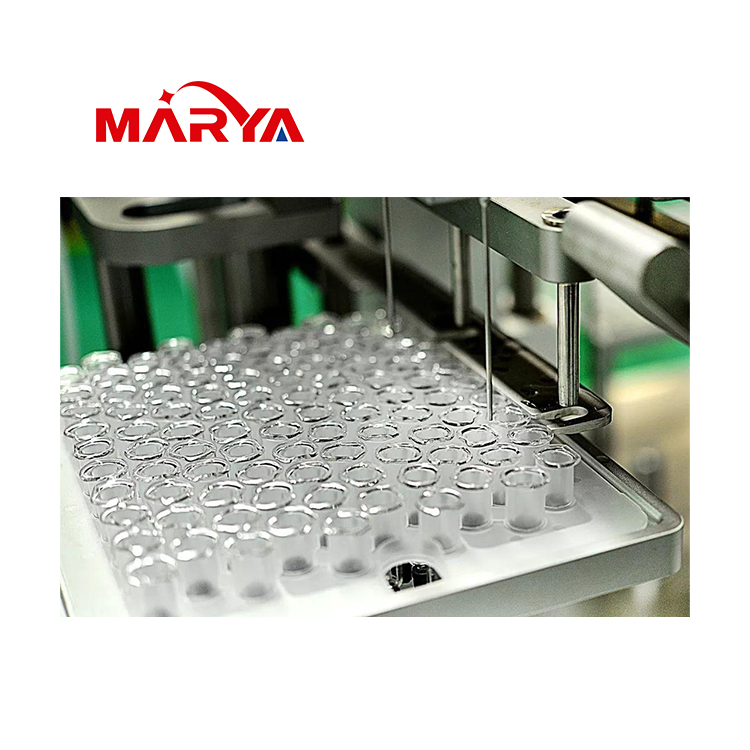

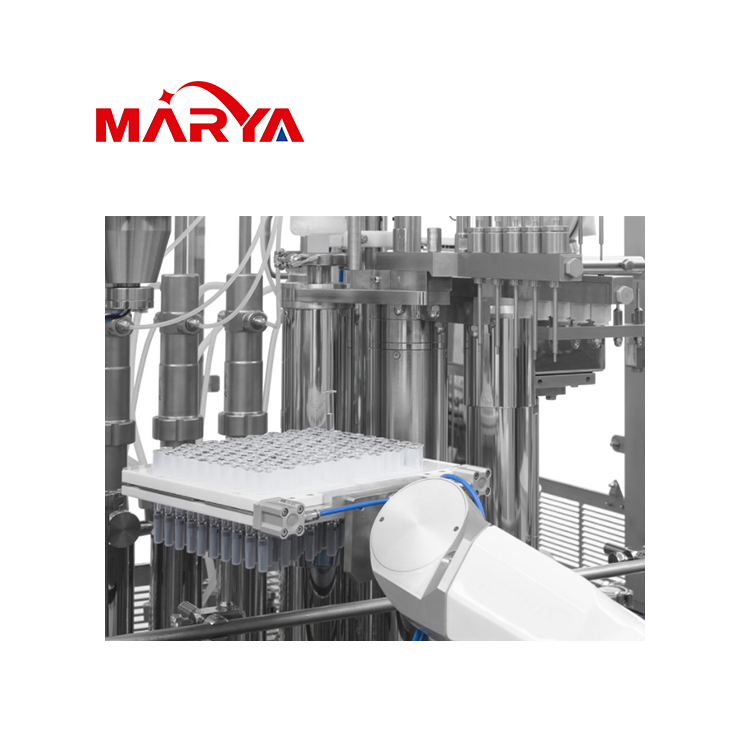

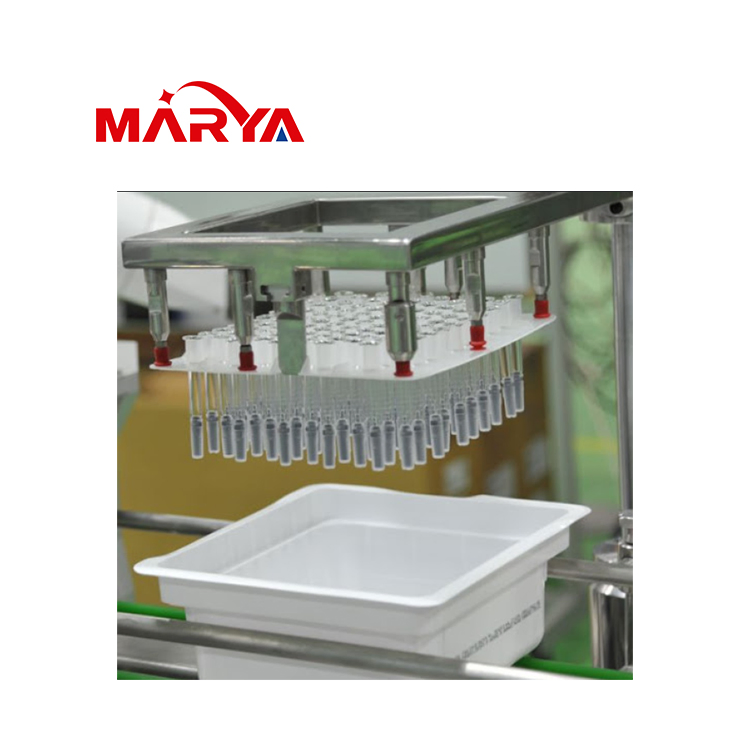

This Syringe Filling System is primarily designed for the unpacking, tearing, filling, and plugging of disposable syringes in honeycomb trays within pharmaceutical facilities. It is optimized for the production of aseptic products such as vaccines, monoclonal antibodies, heparin, insulin, and hyaluronic acid.

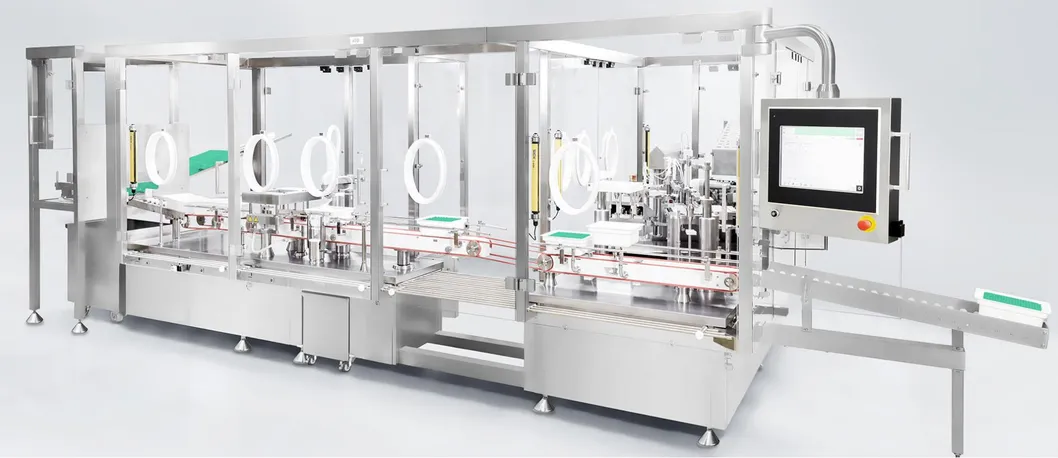

Syringe Filling System
Technical Parameters
Suitable Product Range0.1-20ml
Power Supply380V 50Hz
Power4.4kw
Filling Error+/-1%
Compress Air Pressure0.6~0.8MPa 20m³/h
Auto Stoppering Rate>=99.5%
Weight750kg
Dimension1630X1320X1700(mm)
Performance Features
  • Compliance with new GMP regulations in design and manufacturing.
  • Servo control system for automatic honeycomb tray processing.
  • Applications range from 1ml to 20ml with high accuracy.
  • Capacity: 2000-30000 bph depending on configuration.
  • Options for metal, peristaltic, or ceramic pumps.

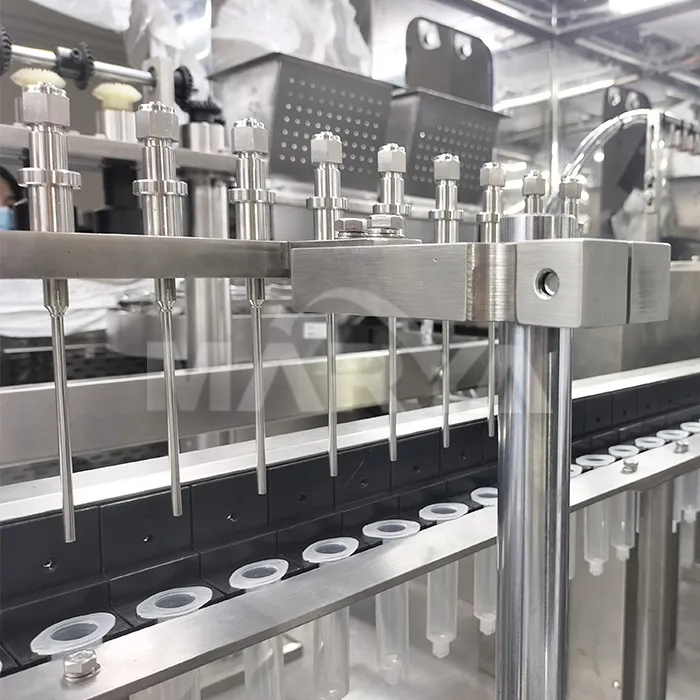

Feature View 1

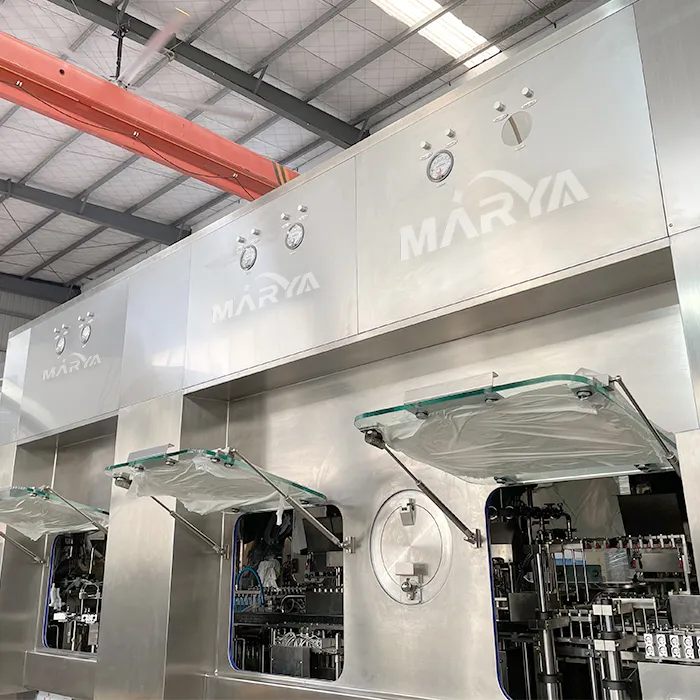

Feature View 2
  • No friction between plunger contact surfaces during transport.
  • Servo-driven main components located for precision and hygiene.
  • Configurable CIP/SIP and Nitrogen filling units.
  • Vacuum filling capability for high-viscosity products.
  • Available with Open-RABS and Class 100 laminar flow systems.
Production & Quality Showcase
Overview
Quality

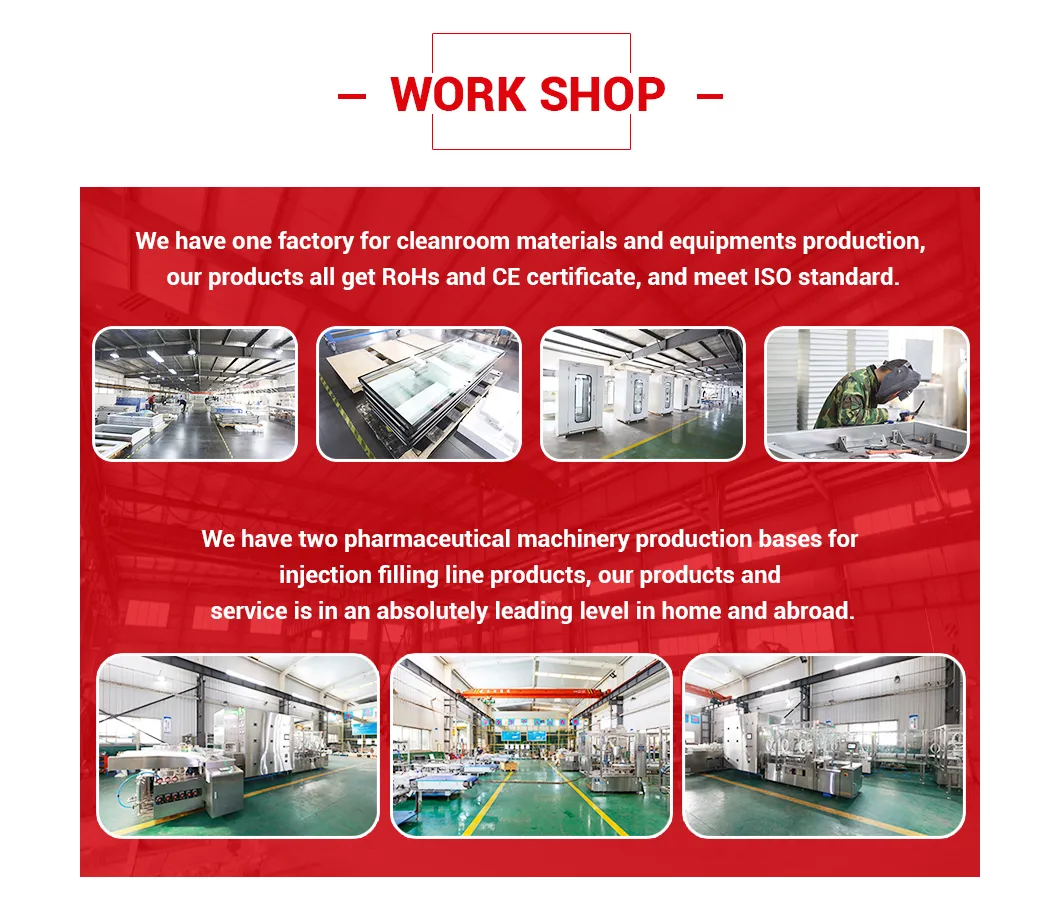

Workshop
Certificate 1
Certificate 2

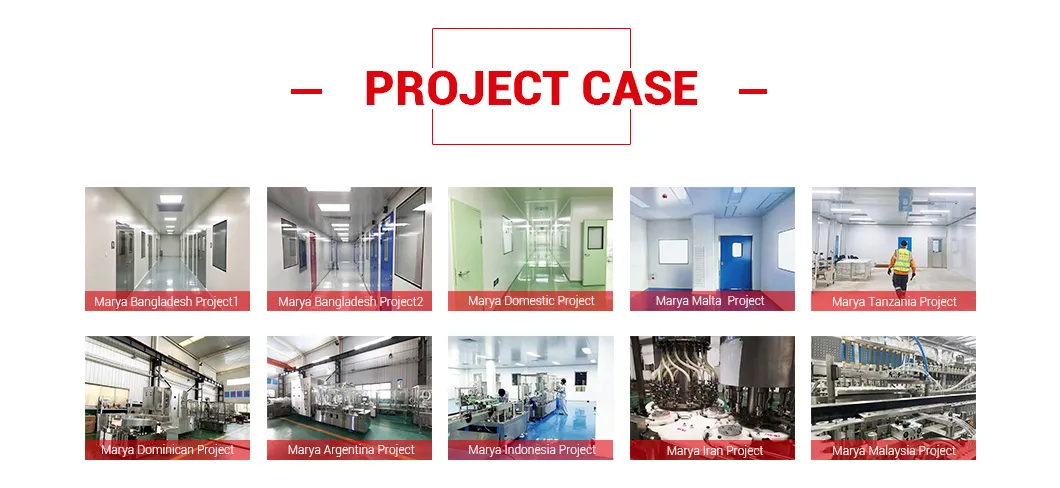

Project Case
Customer Visit
Exhibition
Team
Shipping
Frequently Asked Questions
What is the applicable filling range for this system?
The system is suitable for a wide range from 0.1ml to 20ml by properly changing the specification parts.
What types of products can be filled using this machine?
It is designed for various aseptic products, including vaccines, monoclonal antibodies, insulin, and highly viscous liquids like hyaluronic acid.
How accurate is the filling process?
The filling error is maintained within +/- 1%, depending on the specific characteristics of the medicinal solution.
Does the machine comply with international standards?
Yes, the design, materials, and manufacturing processes are strictly in accordance with the latest GMP regulations.
What kind of control system does the machine use?
The system utilizes a high-precision PLC automatic control combined with a servo motor system and a color touchscreen for monitoring.
Can the system handle high-viscosity products?
Yes, the machine can be equipped with a specialized vacuum filling system specifically for processing highly viscous products.
